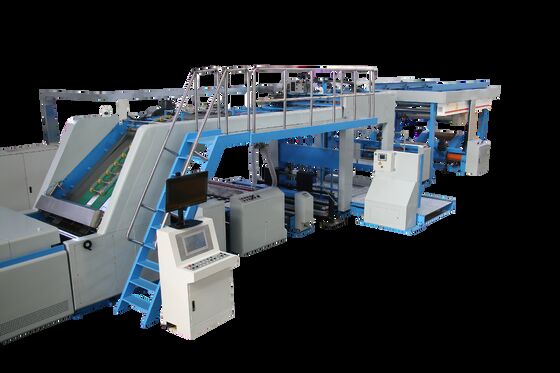

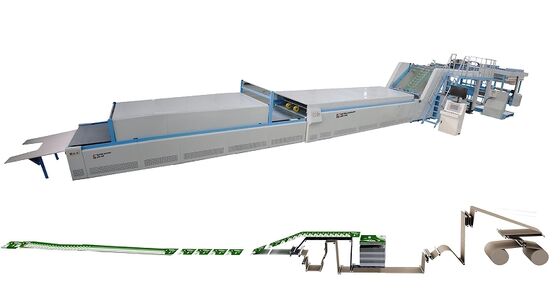

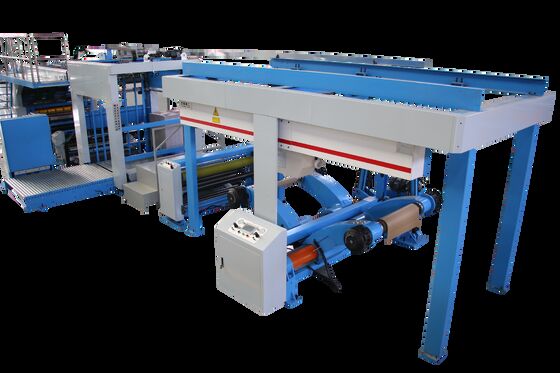

High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed

High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed
High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed
High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed

Gambar besar :  High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed

Detail produk:
Kontak

High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed

Deskripsi
Menyoroti:

150m/min Maximum Line Speed Flute Laminator Machine

,

Servo Synchronous Cross-Cutting Litho Lamination Machine

,

12000P/h Maximum Laminating Speed Reel to Sheet Litho-Laminator

Reel to Sheet Litho-Laminator
Product Overview
High Speed Flute Laminator Machine with 150m/min Maximum Line Speed, Servo Synchronous Cross-Cutting, and 12000P/h Maximum Laminating Speed 0
Production Line Length: 30 meters
Key Features
  • Compatible with both white latex glue and starch glue for laminating applications
  • High-speed paper splicing with no speed reduction during operation
  • Zero paper tail generation and minimal waste production
  • Continuous feeding of single-sheet face paper for color printing
  • No machine stoppage required when changing paper stacks
  • Automatic corrugated paper edge trimming with waste removal system
  • Servo synchronous cross-cutting with color mark detection
  • Precise positioning and length control capabilities
  • Servo high-speed laminating with automatic synchronization of base and face paper
  • High-speed stacking machine with automatic bidirectional stacking
  • Video monitoring at main operation positions for immediate anomaly detection
  • Remote diagnosis system for convenient machine maintenance
Technical Specifications
Parameter Specification
Maximum Paper Width 1450mm / 1650mm
Minimum Paper Width 500mm
Maximum Paperboard Size (L × W) 1450 × 1450 mm / 1650 × 1650 mm
Minimum Paperboard Size (L × W) 500 × 500 mm
Maximum Line Speed 150 m/min
Maximum Laminating Speed 12,000 pieces/hour
Single Sheet Laminating Accuracy ±1mm (front lay), ±0.5mm (side lay)
Maximum Collection Speed 12,000 pieces/hour (E flute), 10,000 pieces/hour (B flute)
