Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Gambar besar :  Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Detail produk:
Tempat asal: Anhui
Nama merek: Innovo Bochen
Sertifikasi: CE
Nomor model: ZST-1450/1650/1900/2200
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 24000-40000USD
Kemasan rincian: Tas Vakum
Waktu pengiriman: 15-30 hari
Menyediakan kemampuan: 50 set per bulan
Kontak

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator

Deskripsi
Penggunaan: penumpukan palet untuk kertas laminasi Penyesuaian ukuran: Dengan layar sentuh satu tombol
Jual titik: Hemat Tenaga Kerja Kecepatan susun: 12000pcs/jam
Tipe Mesin: Penumpukan Pallet untuk papan Penggunaan mesin: Penumpukan kertas setelah laminasi
Berat jaring mesin: 4800kg Ukuran lembar min: 42*45cm
Kecepatan susun: 12000pcs/jam (e seruling) Ukuran papan maks: 1450*1450mm
Menyoroti:

Automatic flip flop stacker machine

,

High production corrugated cardboard stacker

,

Flute laminator stacker machine

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator
Auto Flip Flop Stacker Machine For Flute Litho Laminator

This stacking machine is an essential accessory for flute laminating machines, designed to automate paper counting, turning, and stacking processes in corrugated cardboard production.

Machine Details

The system consists of four integrated components:

  • Slow paper table for controlled material feed
  • Stacking table for paper accumulation
  • Turning table with paper pile inversion mechanism
  • Paper receiving table with pallet system

The automated process significantly reduces labor requirements while improving delivery efficiency and reducing manual handling intensity.

Technical Specifications
Model ZST-1450 ZST-1650
Max size 1500×1500mm 1700×1700mm
Min size 420×450mm 420×450mm
Applicable paper 150-800g/m² 150-800g/m²
Bottom paper A-F corrugated board, ≤10mm A-F corrugated board, ≤10mm
Speed 12,000 pcs/hour 12,000 pcs/hour
Power 8 kW 10 kW
Key Features
  • Newly designed delivery bin eliminates paper indentation from metal contact
  • Advanced belt conveying mechanism prevents creasing from paper weight
  • Fully automated paper counting and stacking process
  • Precision paper turning mechanism for consistent results
Machine Components

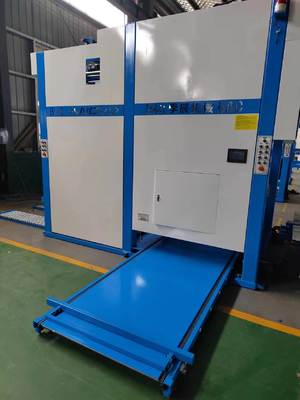

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 0
Optional Features

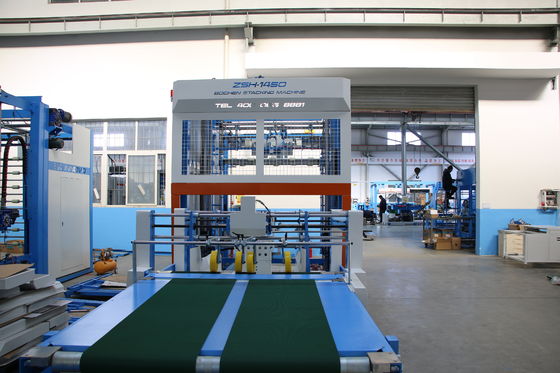

Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 1

Semi-automatic pallet loading option available, providing labor savings and enhanced operator safety.

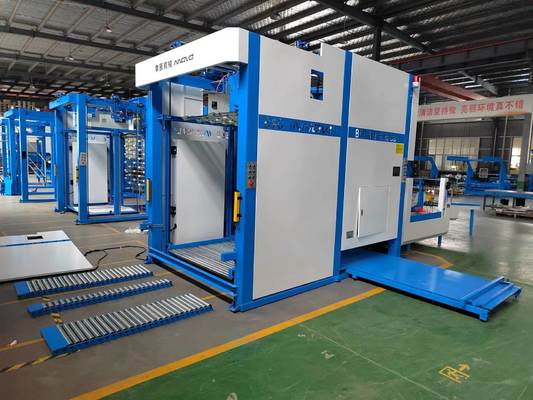

Machine Overview
Automatic 12000pcs/Hour Flip Flop Stacker Machine For Corrugated Cardboard High Production With Flute Laminator 2
