High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

Gambar besar :  High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

Detail produk:
Tempat asal: CINA
Nama merek: INNOVO
Sertifikasi: CE
Nomor model: ZGFM-1500H/1700H
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD45000-65000
Kemasan rincian: Palet besi dan kemasan film
Waktu pengiriman: 20-30 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 30 set/bulan
Kontak

High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

Deskripsi
Pasokan Kustomisasi: Menurut pelanggan waktu siap: Sekitar 20-25 hari kerja
Kecepatan kerja maks: 17000 sheet/jam atau 180m/mnt Max Bottom Sheet Feeding Ketebalan: seruling 8-10mm
Ukuran papan min: 38*40cm dan 40*40cm Akurasi tongkat: ± 1.0mm
Ukuran kertas maks: 170*170cm Kekuatan: 22kw, 25kw, 27kw, 30kw
Menyoroti:

Precision Flute Laminator Machine

,

Large Paper Size Litho Laminator

,

Multiple Power Options Automatic Flute Laminator

Professional Automatic High Speed Flute Laminator Machine
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

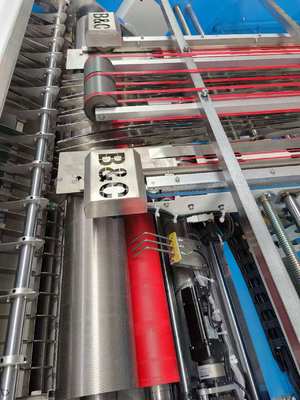

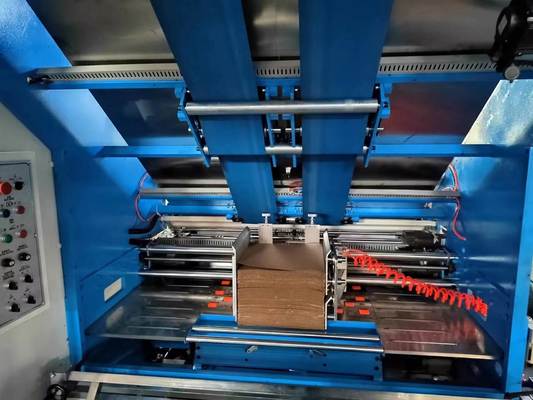

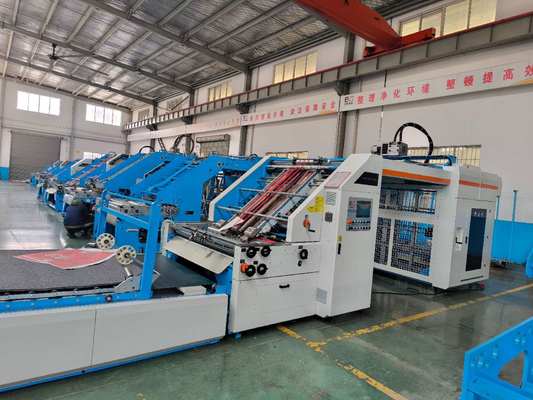

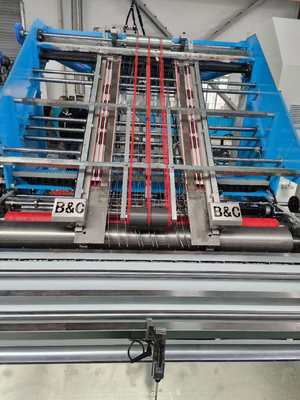

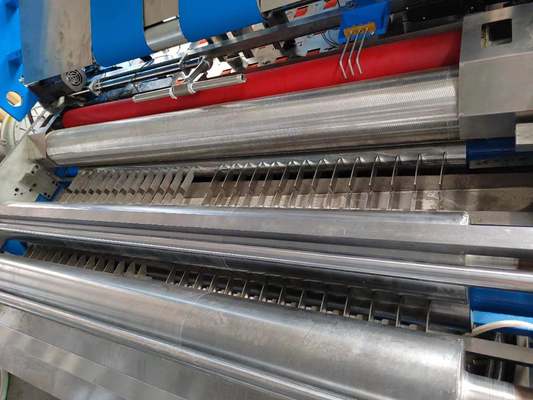

Product Images
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 0 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 1 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 2 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 3 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 4 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
